50000 lb-in Double Reduction Planetary Reducer Wheel Drive 6WB2
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Series | 6WB2 | Max. Output Torque | 5650 Nm |
|---|---|---|---|
| Application | Wheel Drive | Reduction | Double Stage |
| Highlight | Planetary Reducer Wheel Drive,Hub Assembly,planetary wheel hub |
||
Product Description

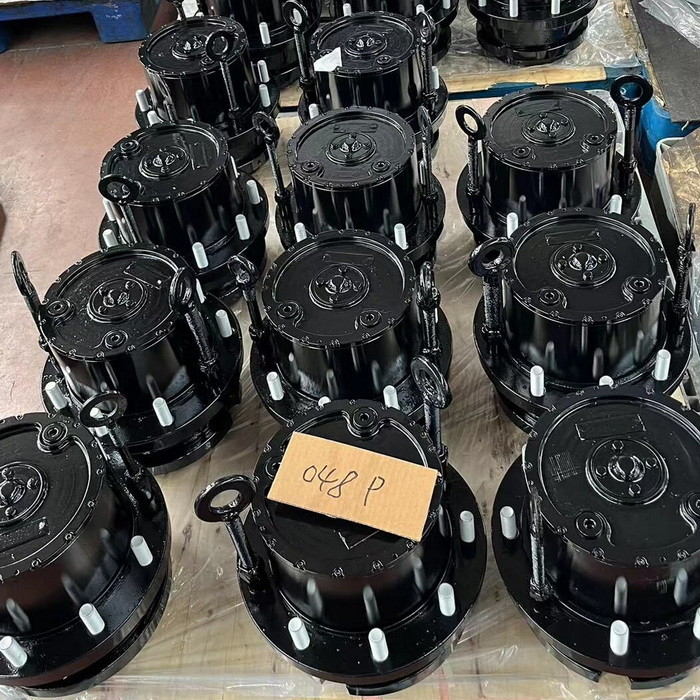

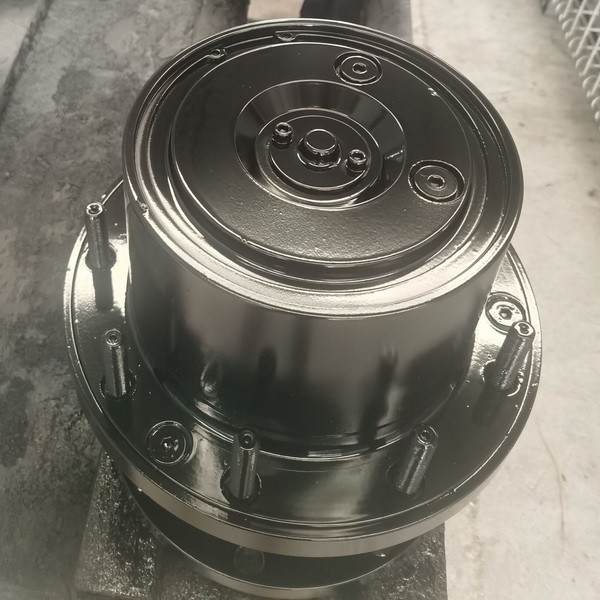

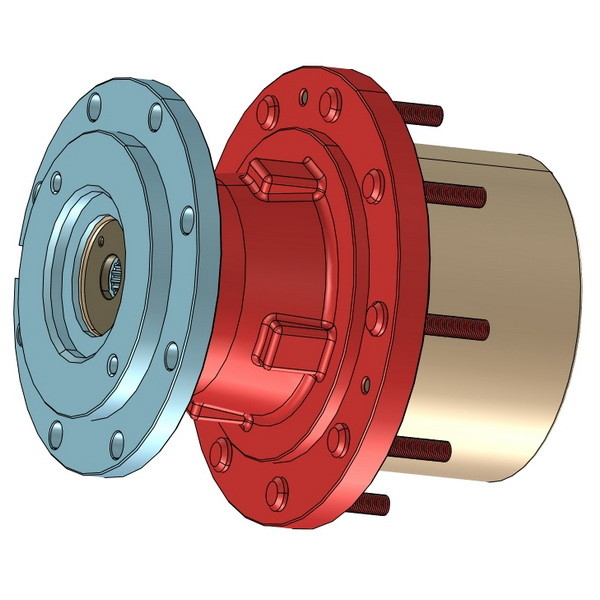

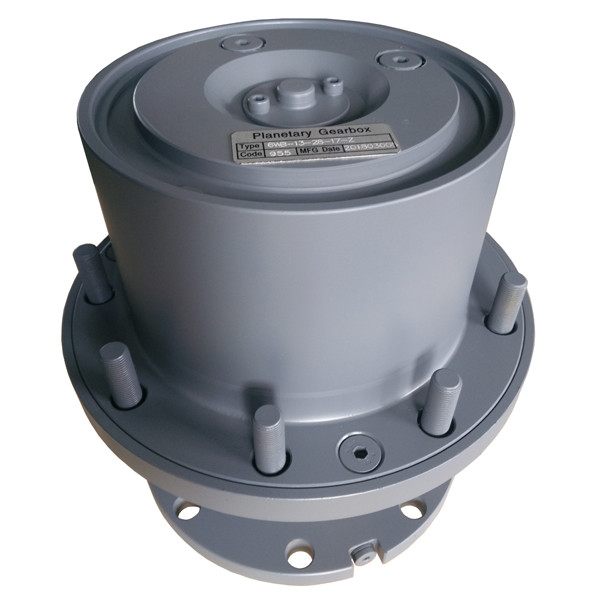

50,000 lb-in (5650 Nm) Double Reduction Planetary Reducer Wheel Drive
Model 6 Wheel Drives are the ideal driving components for wheel driving vehicles and other mobile equipment. They are the perfect choice for every conceivable moving or turning application. The drives are extremely compact and thus may also be installed in space-critical mounting configurations. Based on the using of case-hardened annulus gears, the load capacity and availability of these Drives are extraordinary.
Features:
Compact structure and space-saving design
Robust main bearing system
Integrated static multiple disk parking brake
Optional Disconnect device for towing
Optional Quick disconnection device
Simple mounting
Easy oil change
Low-noise running operation
Specifications:
| Model | 6WB2 |
| Max. output torque: | 5650 N.m |
| Ratio: | 13, 16, 19, 21, 24, 28, 32 |
| Application: | Travel for Wheel driving machines. |
Deren Transmission is a professional manufacture of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
