40000N.m Double Speed Travel Reducer With Two Ratio
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Series | GFT | Max. Output Torque | 40000 Nm |
|---|---|---|---|
| Application | Track Drive | Weight | 150 Kg |
| First Ratio | 24:1 | Second Ratio | 140:1 |
| Highlight | 40000N.m Travel Reducer,Two Ratio Travel Reducer,Double Speed Travel Reducer |
||
Product Description

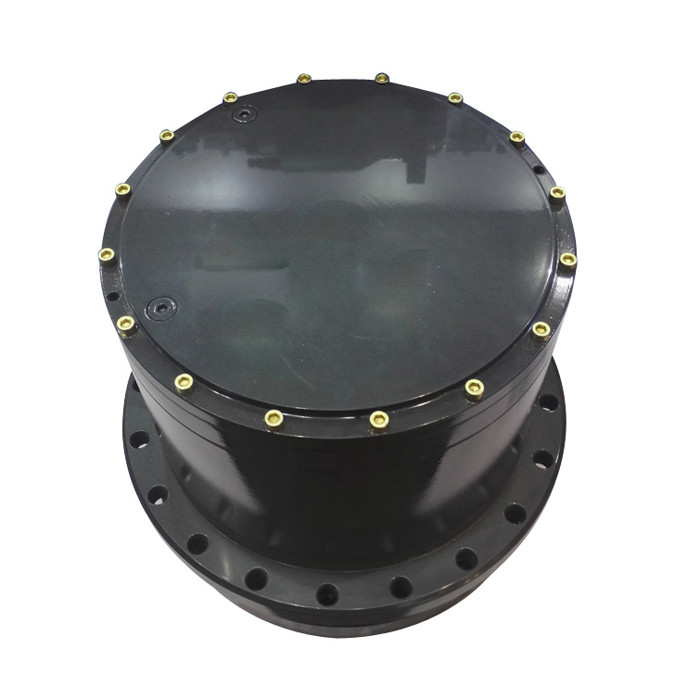

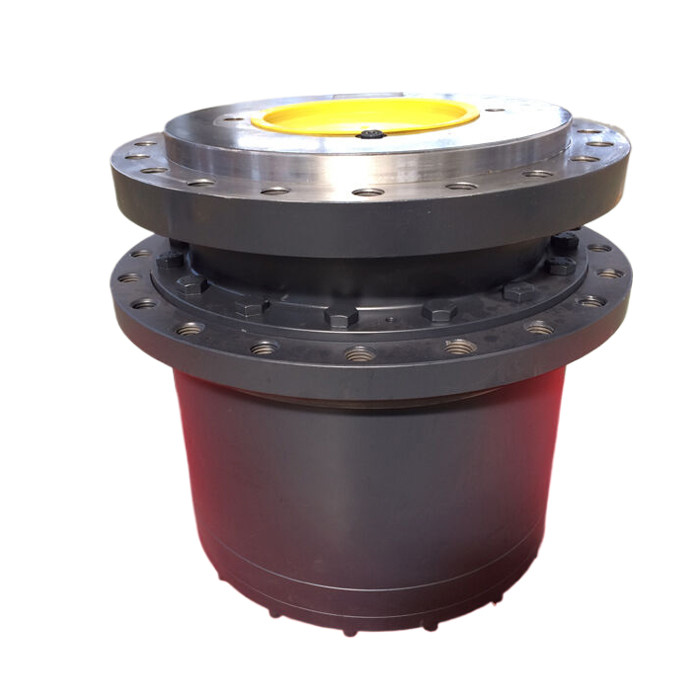

40000N.m Planetary Reducer for Track Drive and Wheel Hub.
With two ratio for Double speed.
GFT series Travel Drives are the ideal driving components for wheel or track driving vehicles and other mobile equipment. They are the perfect choice for every conceivable moving or turning application. The drives are extremely compact and thus may also be installed in space-critical mounting configurations. Based on the using of case-hardened annulus gears, the load capacity and availability of these Drives are extraordinary.
Features:
With two ratio options for double speed in one drive
Compact structure and space-saving design
Robust main bearing system
Integrated static multiple disk parking brake
Optional Disconnect device for towing
Optional Quick disconnection device
Simple mounting
Easy oil change
Low-noise running operation
Specifications:
| Model | GFT040T3B |
| Max. output torque: | 40000 N.m |
| Rated output torque: | 2000 N.m |
| Ratio: |
24 and 140 |
| Dynamic Loading: | 708 KN |
| Static Loading: | 355 KN |
| Motor connection: | Rexroth, Danfoss, Electric |
| Application: | Travel for Track, Chain and Wheel driving machines |
Deren Transmission is a professional manufacture of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
