3000N.m Mini Planetary Gearbox Travel Drive for Track Device
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Series | GFT | Max. Output Torque | 3000 Nm |
|---|---|---|---|
| Application | Track Drive | Weight | 20 Kg |
| Highlight | Wheel Drives,Travel Track Drives,3000Nm Planetary Gear Reducer |
||
Product Description

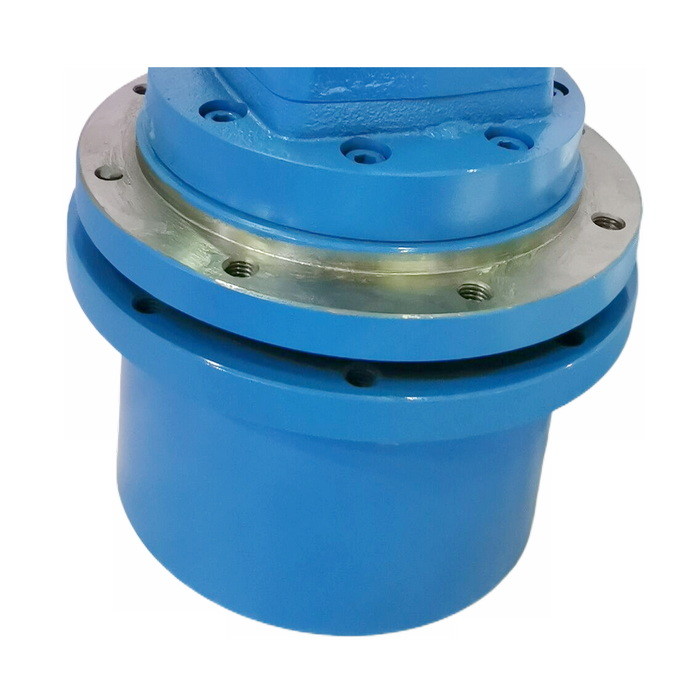

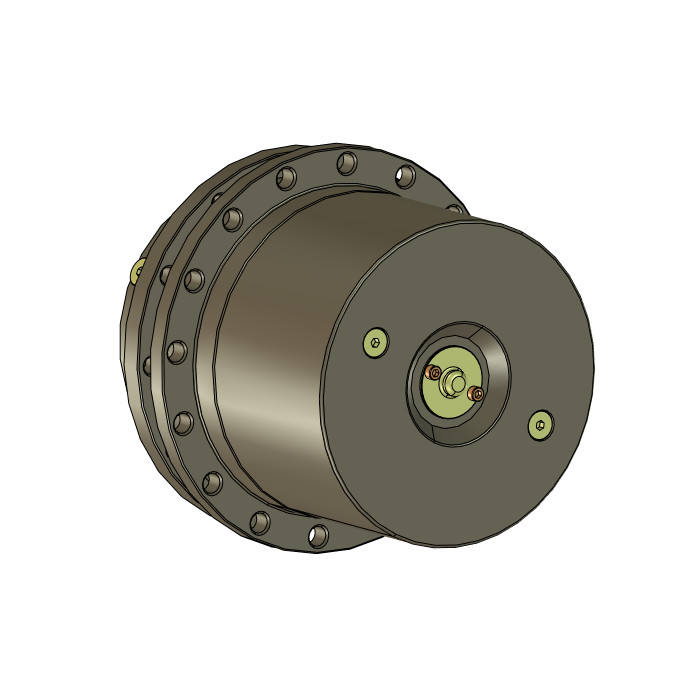

3000N.m Mini Planetary Gearbox for Track Drive
GFT series Travel Drives are the ideal driving components for wheel or track driving vehicles and other mobile equipment. They are the perfect choice for every conceivable moving or turning application. The drives are extremely compact and thus may also be installed in space-critical mounting configurations. Based on the using of case-hardened annulus gears, the load capacity and availability of these Drives are extraordinary.
Features:
Compact structure and space-saving design
Robust main bearing system
Integrated static multiple disk parking brake
Optional Disconnect device for towing
Optional Quick disconnection device
Simple mounting
Easy oil change
Low-noise running operation
Specifications:
| Model | GFT003T |
| Max. output torque: | 3000 N.m |
| Rated output torque: | 2000 N.m |
| Ratio: | 6, 8, 42, 53 |
| Motor connection: | Eaton BMRS, Danfoss KC25, KC38, Electric |
| Application: | Travel for Track, Chain and Wheel driving machines |
Deren Transmission is a professional manufacture of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
