| Application | Electric Motor | Max. Power | 350HP |
|---|---|---|---|
| Output Type | One Output | Industry | Agriculture Machinery |
| Highlight | gear box transfer case,Gearbox Transfer Case 350HP,Gearbox Transfer Case 260kW |
||
Product Description

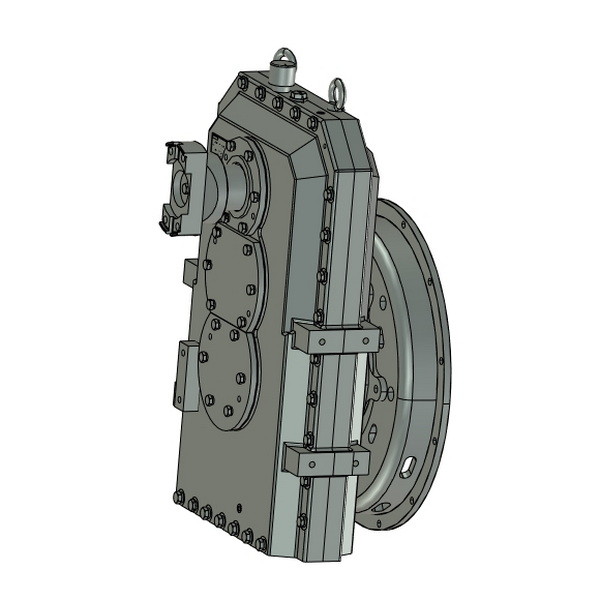

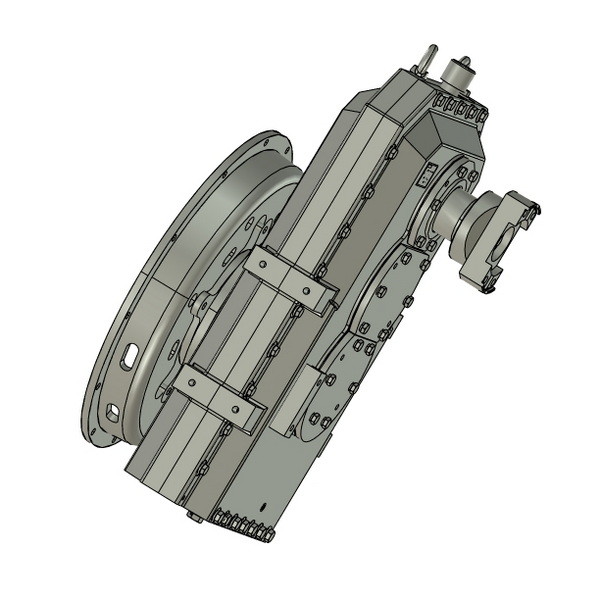

350HP Pump Drive One Input One Output 260kW Transfer Case for Electric Motor Drive 1PD-260E
Maximum Input Power 260 kW (350 hp) Cluthg connection
1:1 ratio @ 2800 rpm
Pump Drive is a transfer gearbox used for the connection of Diesel Engine and Hydraulic Pumps. We are making a wide variety of gear ratios, including speed-increasing and speed-reducing options. Modular design options include a flexible coupling, rubber block drive, or clutch to match your SAE engine flywheel dimensions. Independent mounting is an option, direct or with a clutch. We are also making standard and specialized SAE and DIN adaptor kits for special needs.
Features:
High Strength Steel.
Hardened Shaved gears.
Ball bearings.
Case hardened shafts.
Viton seals on input shaft.
Output rotation opposite the direction of input rotation.
Gear ratios identical on all outputs.
Specifications:
| Ratio (:1) |
Max. input torque (N.m) | Max. output torque per Pump Pad (N.m) | Max. input speed (r/min) | Max. output speed (r/min) |
| 1.00 | 1560 | 1560 | 3000 | 3000 |

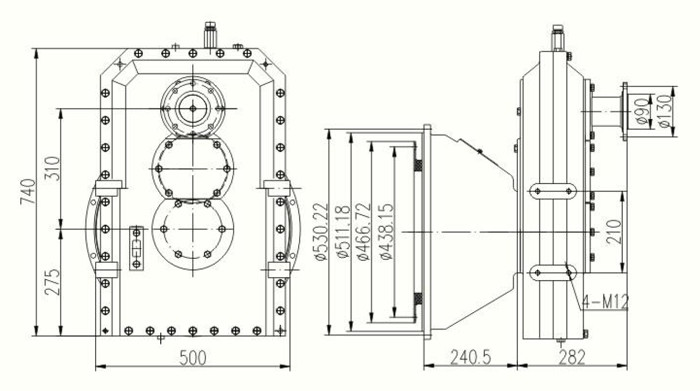

Dimensions:
Deren Transmission is a professional manufacturer of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
