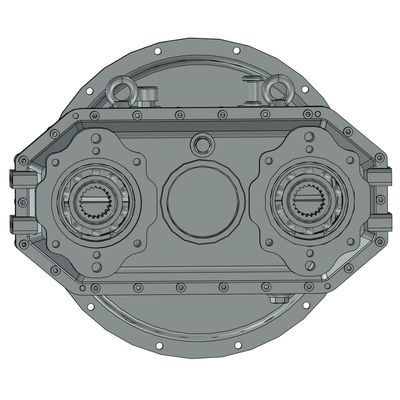

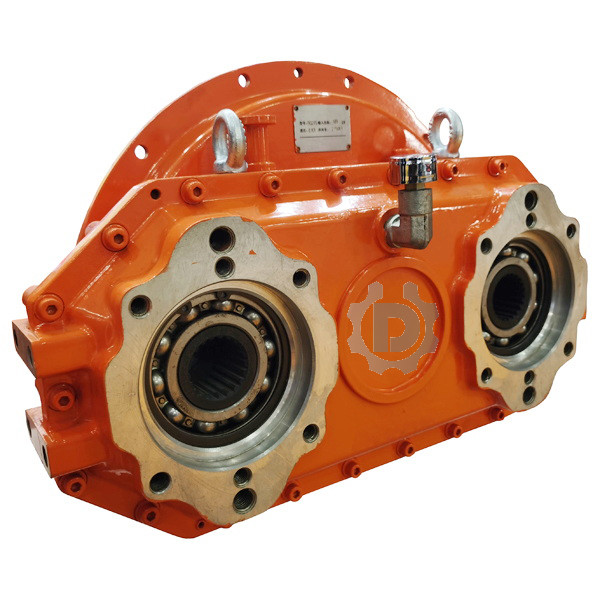

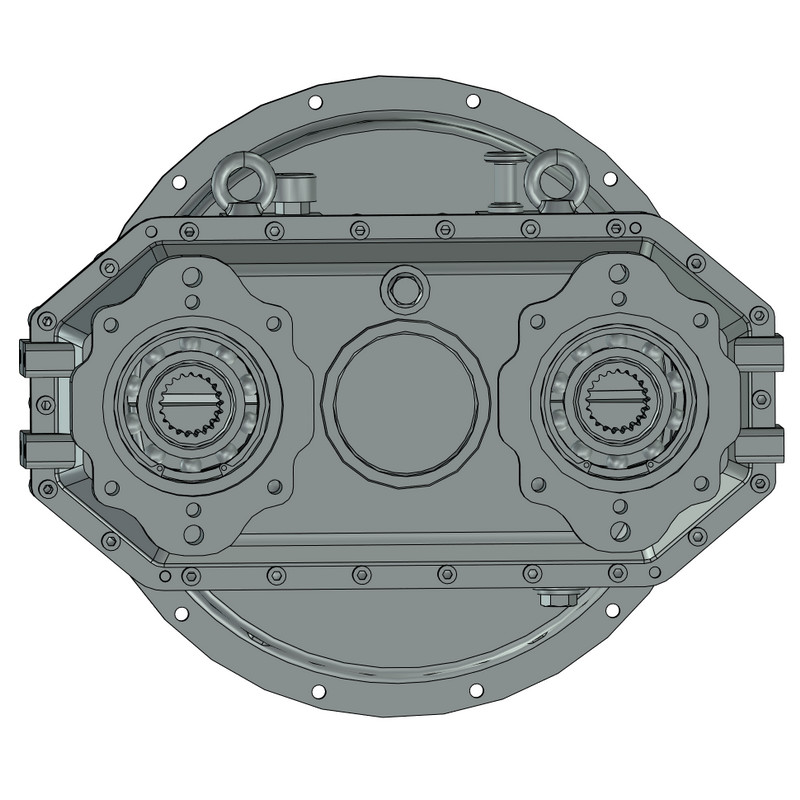

755HP Two Output Pump Drive 2PD-560

  • 755HP Two Output Pump Drive 2PD-560
  • 755HP Two Output Pump Drive 2PD-560
Place of Origin China
Brand Name Deren
Certification ISO9001
Model Number 2PD-560
Minimum Order Quantity 1pc
Price USD2500
Packaging Details Plywood case with pallet
Delivery Time 30 days
Payment Terms L/C, T/T
Supply Ability 200pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Hydraulic Pump Max. Power 755HP
Output Type Two Output Industry Agriculture Machinery
Highlight

High-Pressure Pump Drive

,

replace transfer case

,

transfer case rebuild
Leave a Message
Product Description

755HP One Input Two Output Pump Drive 2PD-560



Maximum Input Power 560 kW (755 hp)


1:1 ratio @ 2500 rpm



Pump Drive is a transfer gearbox used for the connection of Diesel Engine and Hydraulic Pumps. We are making a wide variety of gear ratios, including speed-increasing and speed-reducing options. Modular design options include a flexible coupling, rubber block drive, or clutch to match your SAE engine flywheel dimensions. Independent mounting is an option, direct or with a clutch. We are also making standard and specialized SAE and DIN adaptor kits for special needs.



Features:

High Strength Cast Iron housing.
Hardened Shaved gears.
Ball bearings.
Case hardened shafts.
Viton seals on input shaft.
Output rotation opposite the direction of input rotation.
Gear ratios identical on all outputs.



Specifications:

Ratio Max. input torque (N.m) Max. output torque for single pump (N.m) Max. input speed (r/min) Max. output speed
(r/min)
0.55 2674 781 2000 3667
0.67 2547 910 2100 3150
0.77 2431 1004 2200 2854
0.89 2228 1061 2400 2700
1 2139 1146 2500 2500



Connection options:

Flywheel housing:

SAE #3

SAE #2

SAE #1



Flywheel:

SAE # 10 inch

SAE # 11.5 inch

SAE # 14 inch



Hydraulic flange:

SAE B

SAE C

SAE D

SAE E



Spline sleeve:

ANSI B92.1 30° 15T-16/32DP 46mm

ANSI B92.1 30° 14T-12/24DP 56mm

ANSI B92.1 30° 13T-8/16DP 75mm

ANSI B92.1 30° 21T-16/32DP 56mm

ANSI B92.1 30° 23T-16/32DP 62mm

DIN5480 W40×2×30×18 55mm

DIN5480 W45×2×30×21 60mm

DIN5480 W50×2×30×24 65mm



Deren Transmission is a professional manufacturer of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
