All Products
190KW Two Outputs Transfer Case for Hydraulic Pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Hydraulic Pump | Max. Input Power | 250HP |
|---|---|---|---|
| Type | One Input Two Output | Industry | Agriculture Machinery |
| Highlight | gearbox transfer box,300tdi transfer box,Transfer Boxes |
||
Product Description

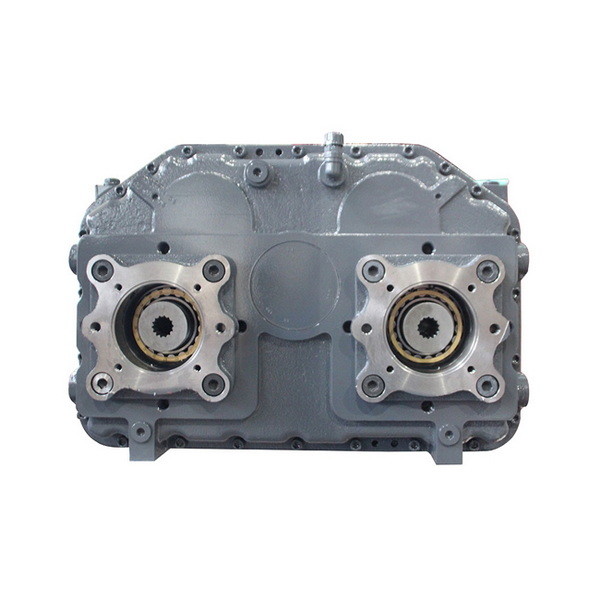

190KW Two Outputs Transfer Case for Hydraulic Pump
Maximum Input Power 190 kW (250 hp)
1:1 ratio @ 2800 rpm
Transfer Case is a transfer gearbox used for the connection of Diesel Engine and Hydraulic Pumps. We are making a wide variety of gear ratios, including speed-increasing and speed-reducing options. Modular design options include a flexible coupling, rubber block drive, or clutch to match your SAE engine flywheel dimensions. Independent mounting is an option, direct or with a clutch. We are also making standard and specialized SAE and DIN adaptor kits for special needs.
Features:
High Strength Aluminum Aloy housing.
Hardened Shaved gears.
Ball bearings.
Case hardened shafts.
Viton seals on input shaft.
Output rotation opposite the direction of input rotation.
Gear ratios identical on all outputs.
Specifications:
| Ratio | Max. input torque | Max. output torque for single pump | Max. input speed | Max. output speed |
| 0.68 | 1120 N.m | 390 N.m | 2500 rpm | 3676 rpm |
| 0.83 | 1056 N.m | 450 N.m | 2650 rpm | 3193 rpm |
| 1 | 1000 N.m | 500 N.m | 2800 rpm | 2857 rpm |
Deren Transmission is a professional manufacturer of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
